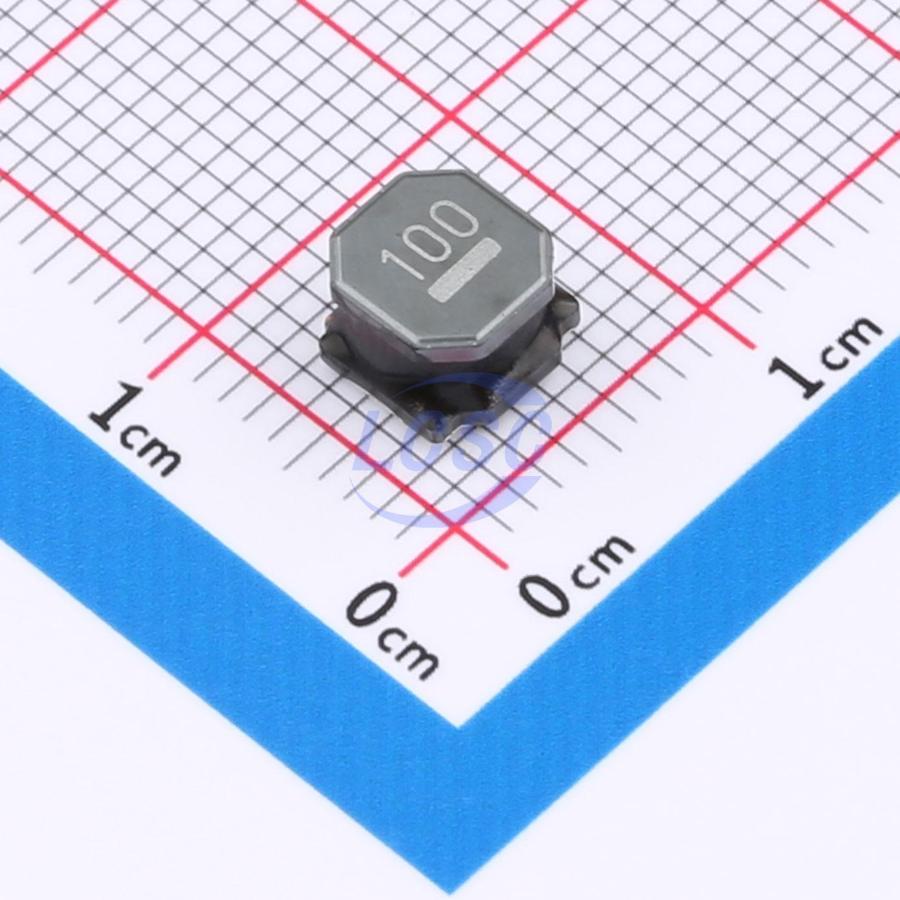

NR6045T100M

Identity

Manufacturer: TAIYO YUDEN(太诱)
Model / MPN: NR6045T100M
LCSC: C174289
Category: power-inductor
Description: 10uH ±20% 3A 10uH ±20% Inductance:10uH Tolerance:±20% Tolerance:±20% Current Rating:2.5A Current - Saturation(Isat):3A DC Resistance(DCR):61.1mΩ Type:- Ratings:-
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: SMD,6x6mm
Pin count: Unknown
EasyEDA symbol UUID: a7dd15fa648e4961b21bea0ba1bb5944
EasyEDA footprint UUID: 1d9f6959093b4e2dad821cede3678c93
EasyEDA device UUID: 13359540e57b4feea61217790fec3b3a
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/NR6045T100M/185679.html
Product URL: https://item.szlcsc.com/datasheet/NR6045T100M/185679.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category power-inductor, interfaces none captured, package SMD,6x6mm, and EasyEDA footprint UUID 1d9f6959093b4e2dad821cede3678c93.

Search Keywords

seed:common-board-support-protection, source:easyeda-bridge, iot, common-pcb, 10uh, smd-6x6mm, shielded, taiyo-yuden, buck-converter, power-inductor, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-board-support-timing-emi-and-protection-seed
