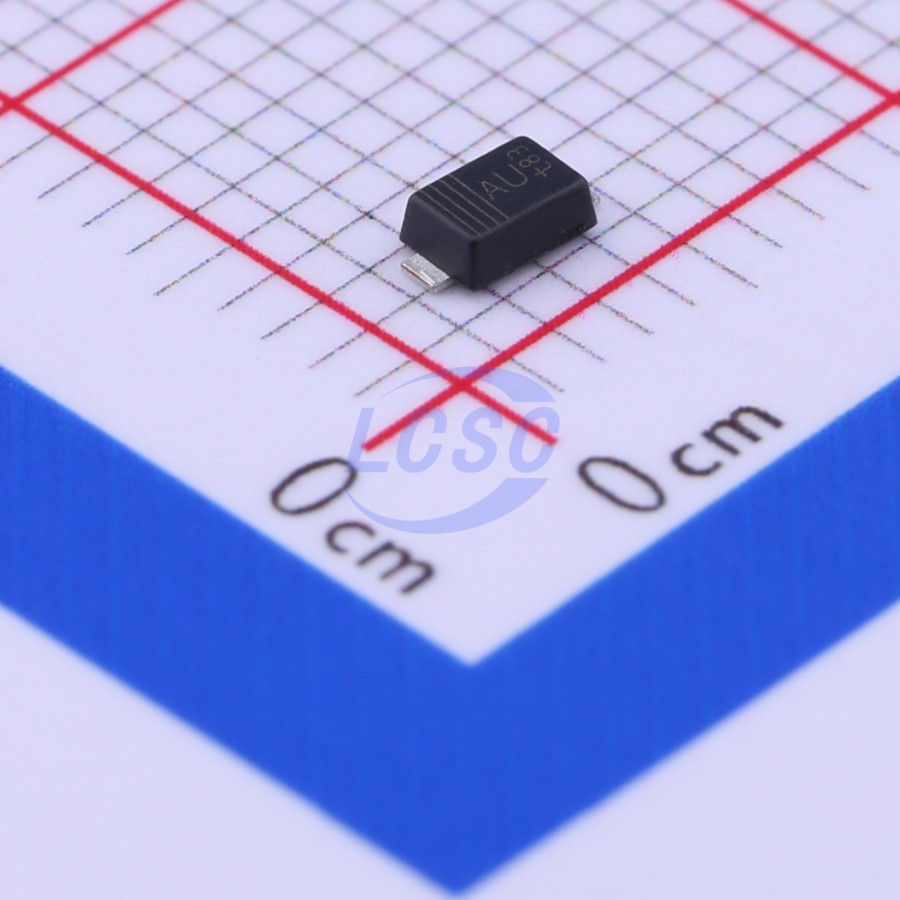

PTVS36VS1UR,115

Identity

Manufacturer: Nexperia(安世)
Model / MPN: PTVS36VS1UR,115
LCSC: C171823
Category: tvs-diode
Description: Unidirectional TVS diode, 36V Vrwm, 58.1V clamp, 6.9A@10/1000us Ipp, 400W@10/1000us Ppp, 42.1V breakdown, 1nA leakage.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: SOD-123W
Pin count: Unknown
EasyEDA symbol UUID: ba478d2ce54d44a597d44fab633e73c6
EasyEDA footprint UUID: 14e00bb82ab54da79822c4c0898efe45
EasyEDA device UUID: ebe1f7ceeb89423ab0ef10cc8fcd6a61
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified automotive load-dump and transient input protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/PTVS36VS1UR%252C115/183209.html
Product URL: https://item.szlcsc.com/datasheet/PTVS36VS1UR%252C115/183209.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category tvs-diode, interfaces none captured, package SOD-123W, and EasyEDA footprint UUID 14e00bb82ab54da79822c4c0898efe45.

Search Keywords

seed:common-automotive-input-protection, source:easyeda-bridge, automotive, common-pcb, power-protection, 36v-standoff, sod-123w, littelfuse, 24v-vehicle-rail, load-dump, tvs-diode, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-automotive-load-dump-and-transient-input-protection-seed, power
