918-418K2022Y40004

Identity

Manufacturer: 精拓金
Model / MPN: 918-418K2022Y40004
LCSC: C168703
Category: usb-c-connector

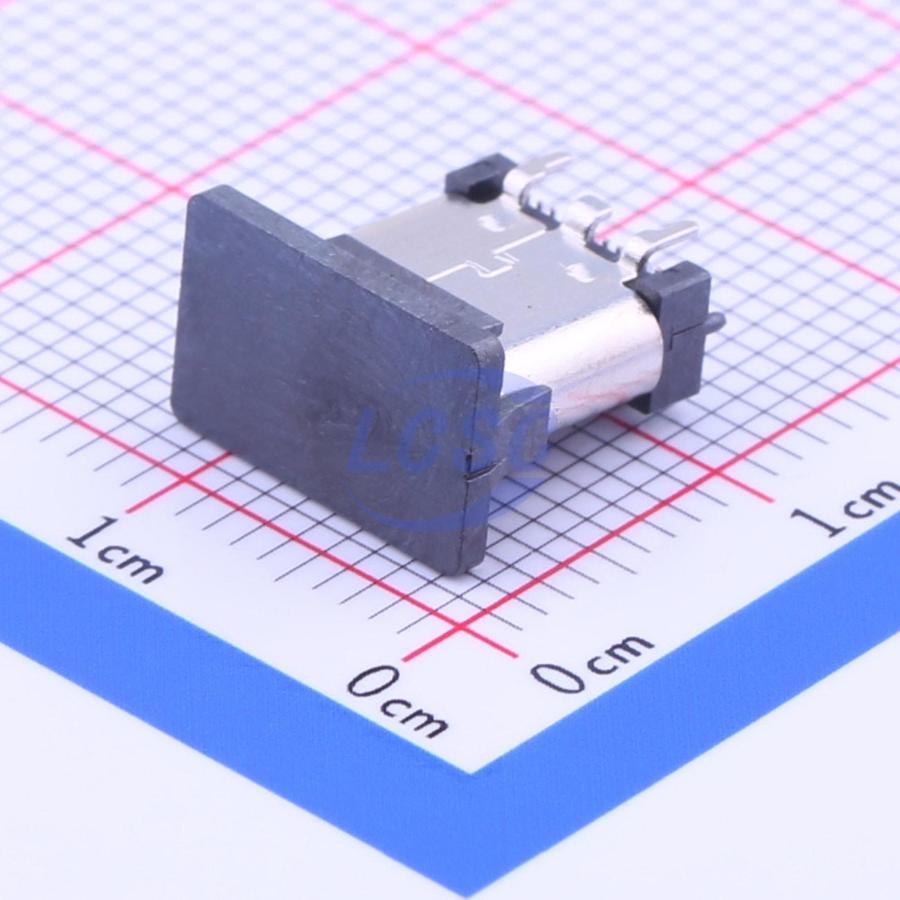

Description: 918-418K2022Y40004 Type-C female connector; USB 3.1; 5V; 24P; 1 port; 5A; 10,000 cycles; length 10.4mm; black; -55°C~+85°C
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

usb: interface

Package And Footprint

Package / footprint name: SMD
Pin count: Unknown
EasyEDA symbol UUID: 3d30689e58934a78be013882e637af2e
EasyEDA footprint UUID: 901b7bf0a3c64f52adc768a82dc38951
EasyEDA device UUID: aae3214ea0e54130ae26c2681a40a117
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 5V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/918-418K2022Y40004/180086.html
Product URL: https://item.szlcsc.com/datasheet/918-418K2022Y40004/180086.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category usb-c-connector, interfaces usb, package SMD, and EasyEDA footprint UUID 901b7bf0a3c64f52adc768a82dc38951.
