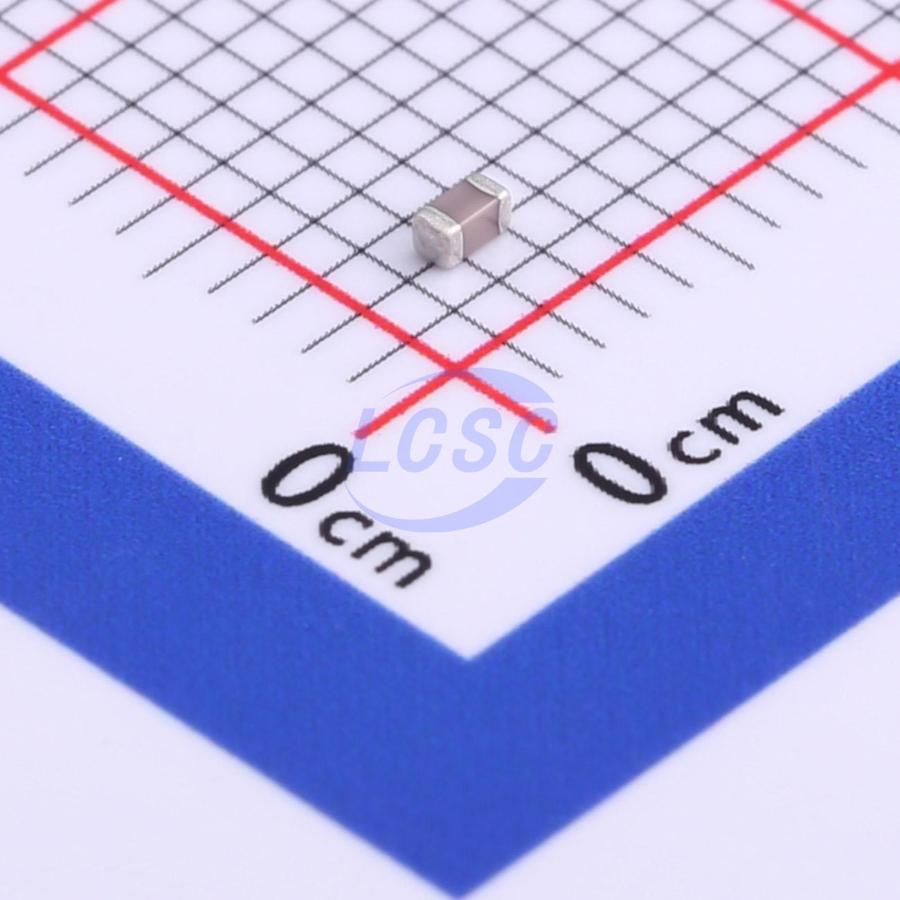

CL10C330JB8NNNC

Identity

Manufacturer: SAMSUNG(三星)
Model / MPN: CL10C330JB8NNNC
LCSC: C1663
Category: capacitor
Description: 33pF ±5% 50V 33pF ±5% 50V Capacitance:33pF Tolerance:±5% Tolerance:±5% Voltage Rating:50V Temperature Coefficient:C0G
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0603
Pin count: Unknown
EasyEDA symbol UUID: 3b9066c9fc504662bf1c7d7b5063f866
EasyEDA footprint UUID: f499007f726c45dbbd59d7d6a82bc126
EasyEDA device UUID: 9df3fc32f1194d39a4e6c96155c02a9a
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: 50V
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Basic Part
JLC note / assembly basis: EasyEDA/JLC verified common resistor and capacitor value seed
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/CL10C330JB8NNNC/2015.html
Product URL: https://item.szlcsc.com/datasheet/CL10C330JB8NNNC/2015.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category capacitor, interfaces none captured, package 0603, and EasyEDA footprint UUID f499007f726c45dbbd59d7d6a82bc126.

Search Keywords

seed:common-passive-values, source:easyeda-bridge, iot, common-pcb, passive-library, 33pf, 0603, c0g, 50v, crystal-load, rf-matching, basic-part, capacitor, jlc-basic, jlc_basic, jlc-note:easyeda-jlc-verified-common-resistor-and-capacitor-value-seed
