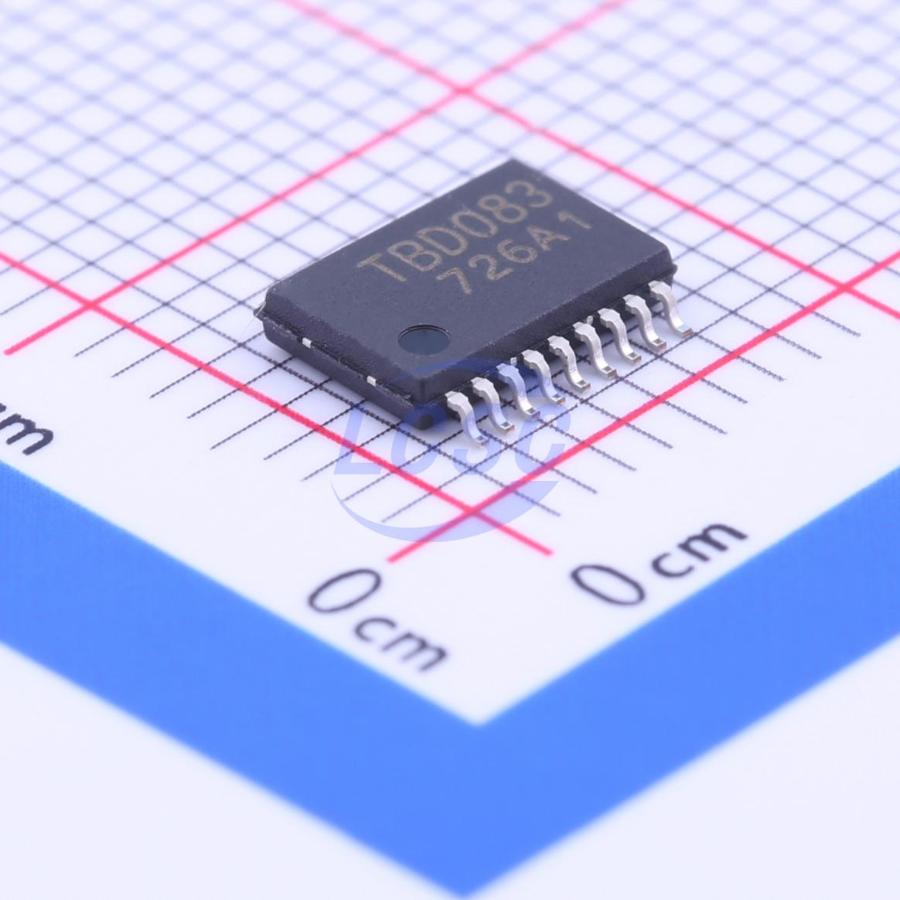

TBD62083AFNG,EL

Identity

• Manufacturer: TOSHIBA(东芝)
• Model / MPN: TBD62083AFNG,EL
• LCSC: C163229
• Category: low-side-driver
• Description: TBD62083AFNG,EL 8-channel sink-current DMoS transistor array; Low Side Switch; 2.5V30V; active high; 500mA; RDS(on) 700mΩ; -40°C+85°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SSOP-18-225mil
• Pin count: 18
• EasyEDA symbol UUID: 9d72e1bb573e48048368ef91f7971730
• EasyEDA footprint UUID: 164ad2d33caf4656a3b7f7bd134fa24d
• EasyEDA device UUID: fdfed1f6b4d04e6797dadac1ee0ea171
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.5V~30V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/TBD62083AFNG%252CEL/174610.html
• Product URL: https://item.szlcsc.com/datasheet/TBD62083AFNG%252CEL/174610.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category low-side-driver, interfaces gpio, package SSOP-18-225mil, and EasyEDA footprint UUID 164ad2d33caf4656a3b7f7bd134fa24d.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, tbd62083, dmoss, relay-driver, solenoid-driver, 8-channel, low-side-driver, ssop-18-225mil, jlc-extended, gpio, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
