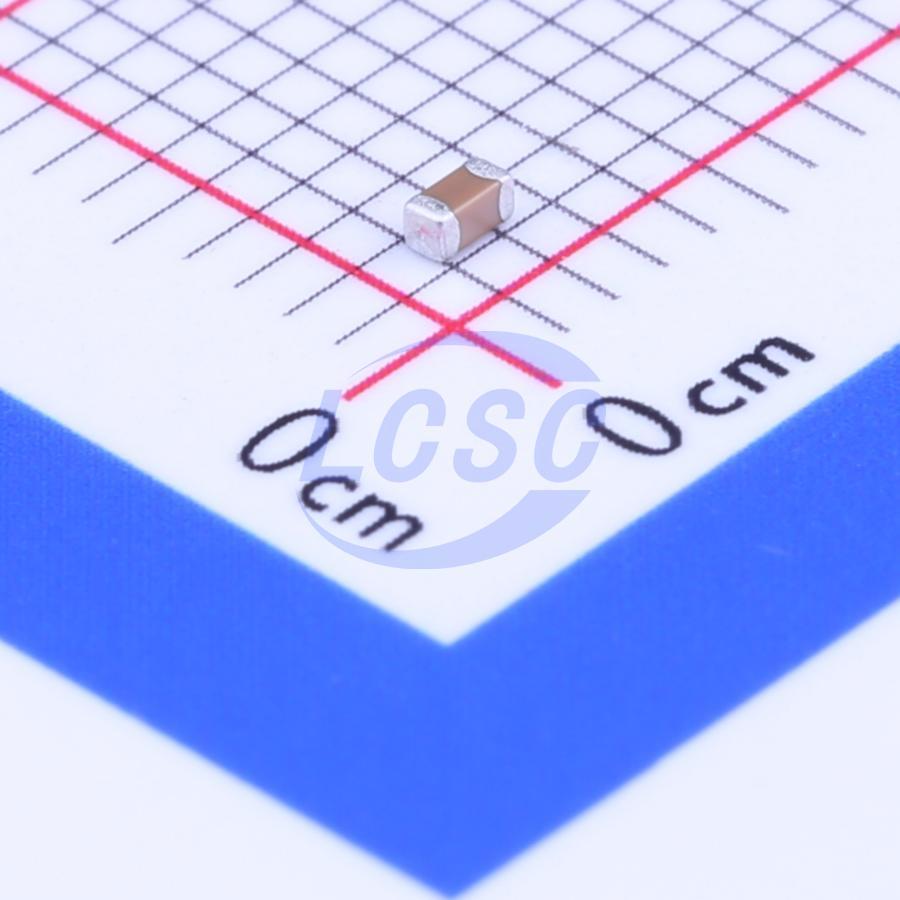

6800pF 0603 50V X7R

Identity

Manufacturer: Texas Instruments
Model / MPN: 6800pF 0603 50V X7R
LCSC: C1631
Category: capacitor
Description: TPS54360 COMP network zero capacitor (series with R20) - relabeled from stale soft-start description; part has no SS pin
Source: Fleet telematics BOM-VERIFIED.csv
Project designators: C21
Project quantity per board: 1

Active current: Not characterized in seed.
Sleep / standby current: Not characterized in seed.
Supply rails: Not characterized in seed.
Notes: Capture rail limits, quiescent current, and enabled/disabled states when relevant.

JLC class: Basic Part
JLC note / assembly basis: Standard
Assembly status: jlc_basic
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet / product URL: Not captured yet.
Product URL: Not captured yet.
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category capacitor, interfaces none captured, package C0603, and EasyEDA footprint UUID f499007f726c45dbbd59d7d6a82bc126.

seed:fleet-telematics, source:bom-verified, capacitor, jlc_basic, jlc-note:standard
