FS8205A

Identity

• Manufacturer: FORTUNE(富晶)
• Model / MPN: FS8205A
• LCSC: C16052
• Category: dual-n-mosfet
• Description: Dual N-channel MOSFET, 20V, 6A/9A, RDS(on):35mΩ@2.5V,3A, Pd:1W, Vgs(th):1V@250uA
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

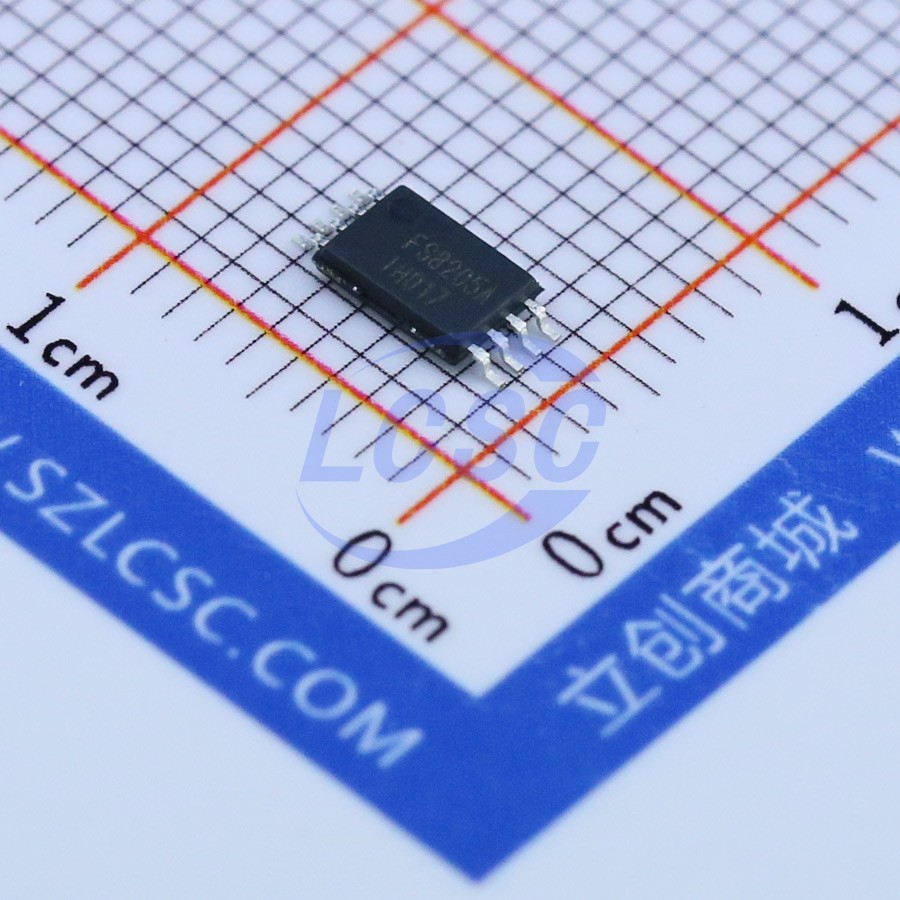

• Package / footprint name: TSSOP-8
• Pin count: 8
• EasyEDA symbol UUID: 64025396da084b0f8aadb567f6dc65f1
• EasyEDA footprint UUID: 7ba072e6a18741678410188d07689309
• EasyEDA device UUID: f26d2828f426406ba9a9adfba1c3910c
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/FS8205A/16734.html
• Product URL: https://item.szlcsc.com/datasheet/FS8205A/16734.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category dual-n-mosfet, interfaces none captured, package TSSOP-8, and EasyEDA footprint UUID 7ba072e6a18741678410188d07689309.

Search Keywords

seed:common-battery-usb-power, source:easyeda-bridge, iot, common-pcb, battery-power, usb-c-power, fs8205a, battery-protection, dual-n-channel, 20v, tssop-8, dual-n-mosfet, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-battery-management-usb-c-power-and-power-path-seed, power
