B2B-PH-SM4-TB(LF)(SN)

Identity

• Manufacturer: JST
• Model / MPN: B2B-PH-SM4-TB(LF)(SN)
• LCSC: C160352
• Category: jst-ph-connector

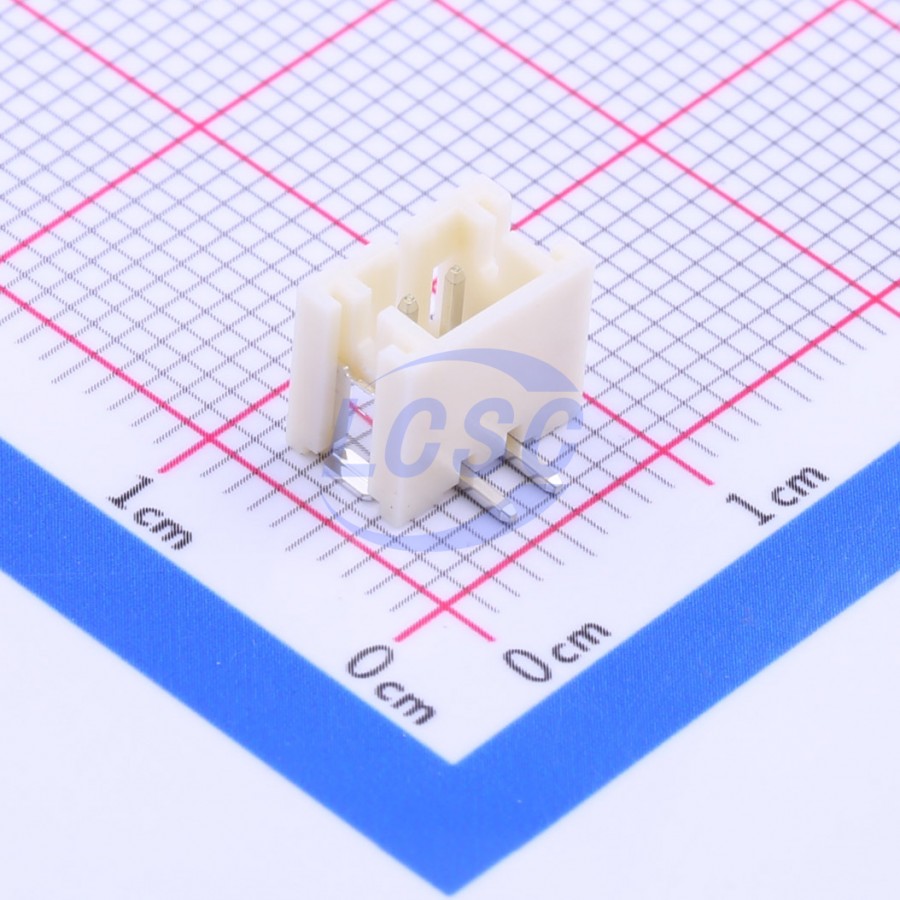

• Description: PH series 1x2P 2mm vertical SMT JST-PH connector, 100V, 2P, 1 row, 2A, copper alloy contacts, tin plating, -25°C
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: SMD,P=2mm
• Pin count: Unknown
• EasyEDA symbol UUID: a9dfa470868849b19fbbd3286cbbaf48
• EasyEDA footprint UUID: 188dbab0225c472e8df462e77e8d0dd1
• EasyEDA device UUID: 81214969fb224686b54499e2b4f4ad3f
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 100V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/B2B-PH-SM4-TB(LF)(SN)/171732.html
• Product URL: https://item.szlcsc.com/datasheet/B2B-PH-SM4-TB(LF)(SN)/171732.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category jst-ph-connector, interfaces none captured, package SMD,P=2mm, and EasyEDA footprint UUID 188dbab0225c472e8df462e77e8d0dd1.
