SM24CANB-02HTG

Identity

Manufacturer: Littelfuse(美国力特)
Model / MPN: SM24CANB-02HTG
LCSC: C151237
Category: can-tvs-diode
Description: CAN TVS diode, 24V Vrwm, 50V clamp, 10A@8/20us Ipp, 500W@8/20us Ppp, 26.7V breakdown, 100nA leakage, IEC 61000-4-5/4-2.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

can: interface

Package And Footprint

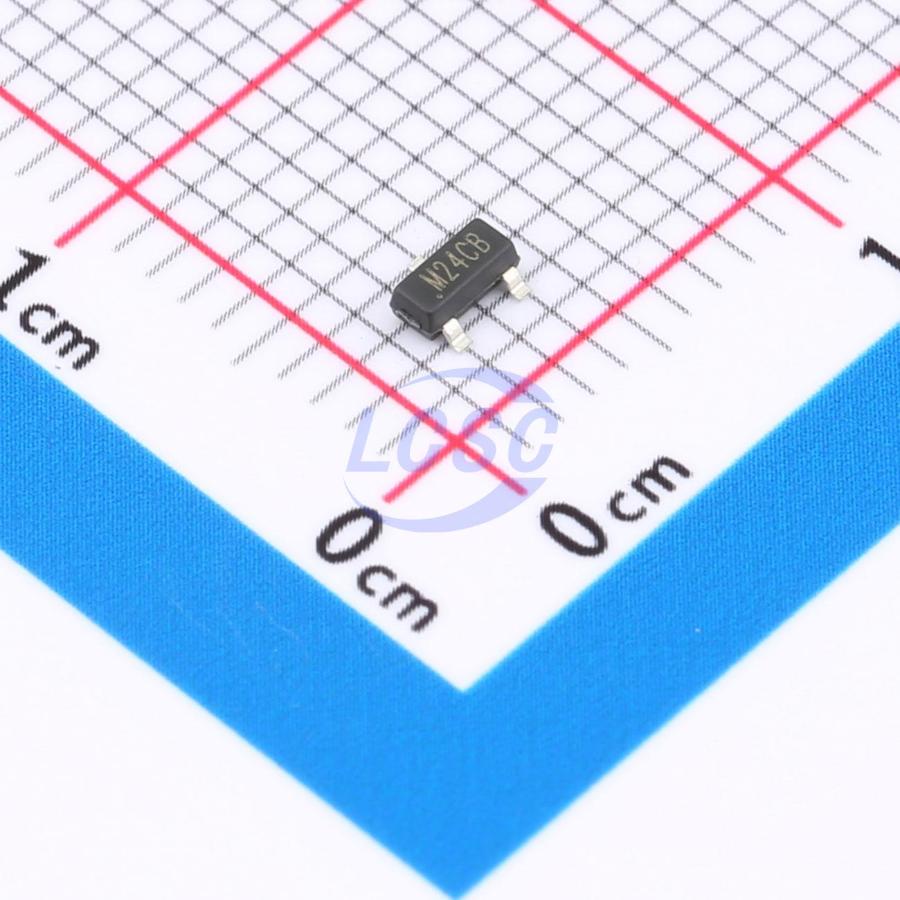

Package / footprint name: SOT-23
Pin count: Unknown
EasyEDA symbol UUID: 3011e08179ab4596895e079832451083
EasyEDA footprint UUID: 18f92042a8ba46109ed61a02a6753de7
EasyEDA device UUID: 87267408073c4295896cbbd3fec8e8da
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/SM24CANB-02HTG/162577.html
Product URL: https://item.szlcsc.com/datasheet/SM24CANB-02HTG/162577.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category can-tvs-diode, interfaces can, package SOT-23, and EasyEDA footprint UUID 18f92042a8ba46109ed61a02a6753de7.
