TPS2561DRCR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TPS2561DRCR
• LCSC: C140303
• Category: current-limited-load-switch
• Description: Dual-channel precision adjustable current-limit high-side power switch, 2.5V6.5V, active high, 2.8A max, 44mΩ RDS(on), -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

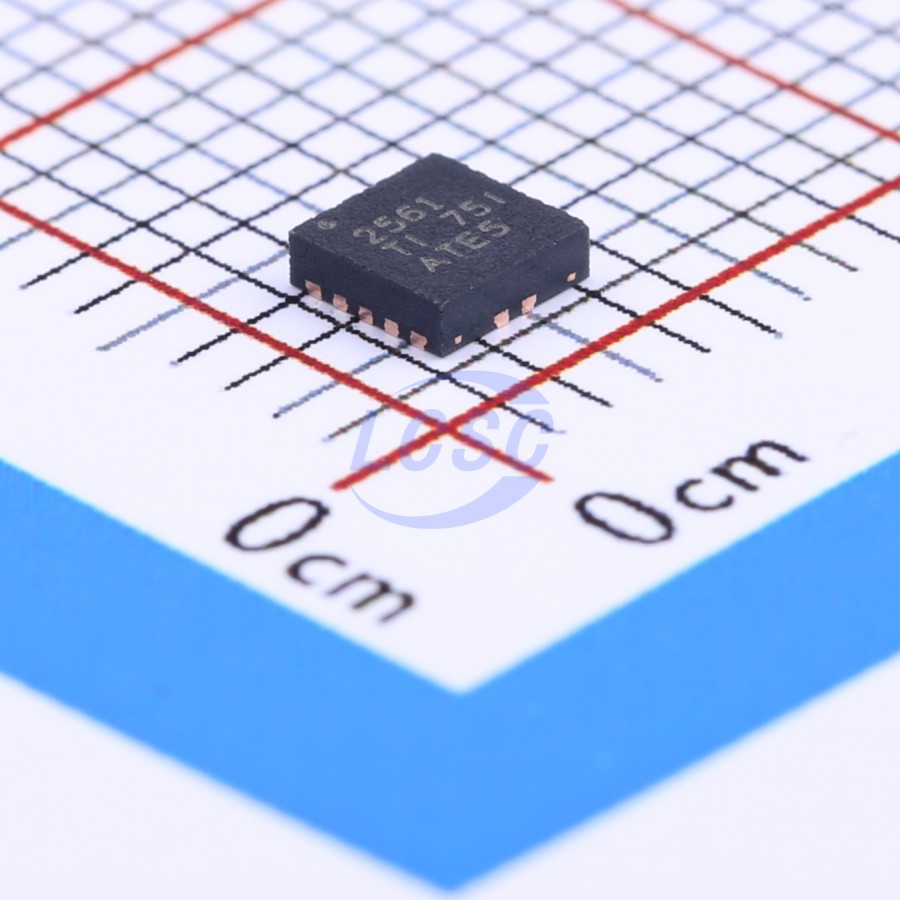

• Package / footprint name: VSON-10-EP(3x3)
• Pin count: Unknown
• EasyEDA symbol UUID: 640e0b61d47e4d2e90eb7cdc3e17e395
• EasyEDA footprint UUID: f20d3c2d3f7f40e4ae2cee3de8f5b3f1
• EasyEDA device UUID: 1a2c433739474392980adca93b0ddc0c
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power distribution, protection, and sensing seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tps2561
• Product URL: https://www.ti.com/cn/lit/gpn/tps2561
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: USB power ports, sensor-rail protection, field-load power switching, current limiting, and fault-controlled high-side distribution
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category current-limited-load-switch, interfaces gpio, package VSON-10-EP(3x3), and EasyEDA footprint UUID f20d3c2d3f7f40e4ae2cee3de8f5b3f1.
