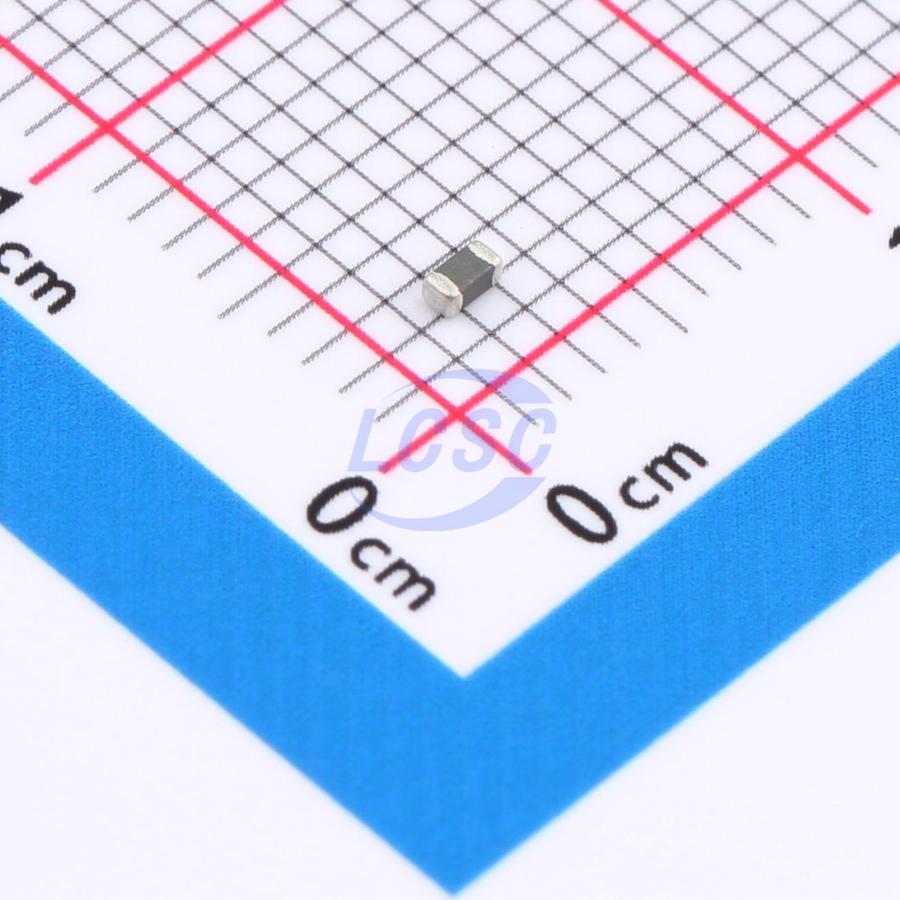

CBW160808U601T

Identity

Manufacturer: FH(风华)
Model / MPN: CBW160808U601T
LCSC: C139183
Category: ferrite-bead
Description: Single-circuit 0603 ferrite bead, Impedance:600Ω@100MHz, Tolerance:±25%, DCR:400mΩ, Current Rating:1A
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

Not captured yet.

Package And Footprint

Package / footprint name: 0603
Pin count: Unknown
EasyEDA symbol UUID: 33f2c911048849289b31e18d8c41215b
EasyEDA footprint UUID: 09e51c3d45fa4661847bc360b71be6be
EasyEDA device UUID: a19263ae9d31430aa956d387e68f1f0c
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Passive part; no quiescent current.
Sleep / standby current: Passive part; no quiescent current.
Supply rails: Application-defined.
Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/CBW160808U601T/150504.html
Product URL: https://item.szlcsc.com/datasheet/CBW160808U601T/150504.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category ferrite-bead, interfaces none captured, package 0603, and EasyEDA footprint UUID 09e51c3d45fa4661847bc360b71be6be.

Search Keywords

seed:common-board-support-protection, source:easyeda-bridge, iot, common-pcb, 600ohm-at-100mhz, 0603, emi-filter, 1a, power-rail-filter, ferrite-bead, jlc-extended, jlc_extended, jlc-note:easyeda-jlc-verified-common-board-support-timing-emi-and-protection-seed
