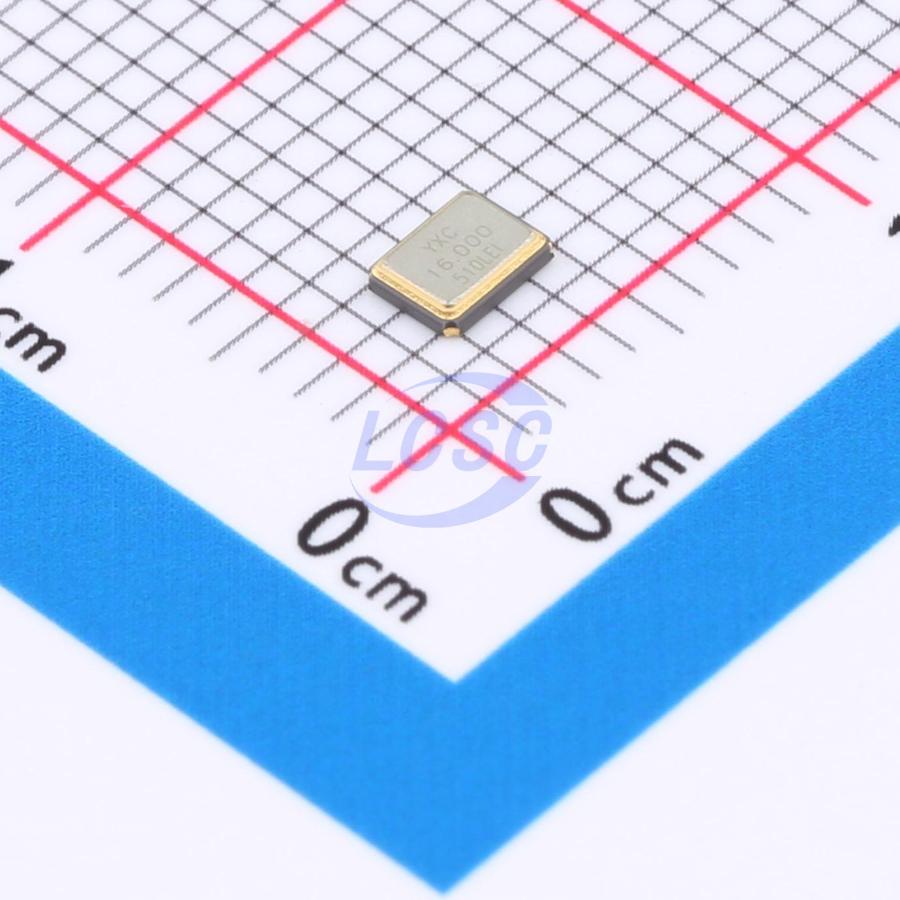

X322516MLB4SI

Identity

• Manufacturer: YXC(扬兴晶振)
• Model / MPN: X322516MLB4SI
• LCSC: C13738
• Category: crystal
• Description: YSX321SL 16MHZ 4P 3225 9PF ±10PPM -4085℃ (±20PPM) Crystal Oscillator 16MHz Type:Crystal Oscillator Frequency:16MHz Normal temperature Frequency Tolerance:±10ppm Normal temperature Frequency Tolerance:±10ppm Load Capacitance:9pF Frequency Stability:±20ppm Frequency Stability:±20ppm Operating Temperature:-40℃+85℃ Operating Temper
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: SMD3225-4P
• Pin count: 4
• EasyEDA symbol UUID: f5cd9a98e7814912a43223b21ca32b3c
• EasyEDA footprint UUID: f00c7f49457d48b2acd9d4c7b9ecce08
• EasyEDA device UUID: dba011b143a248829c6d7f11716dc192
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common board support, timing, EMI, and protection seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/X322516MLB4SI/14393.html
• Product URL: https://item.szlcsc.com/datasheet/X322516MLB4SI/14393.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category crystal, interfaces none captured, package SMD3225-4P, and EasyEDA footprint UUID f00c7f49457d48b2acd9d4c7b9ecce08.
