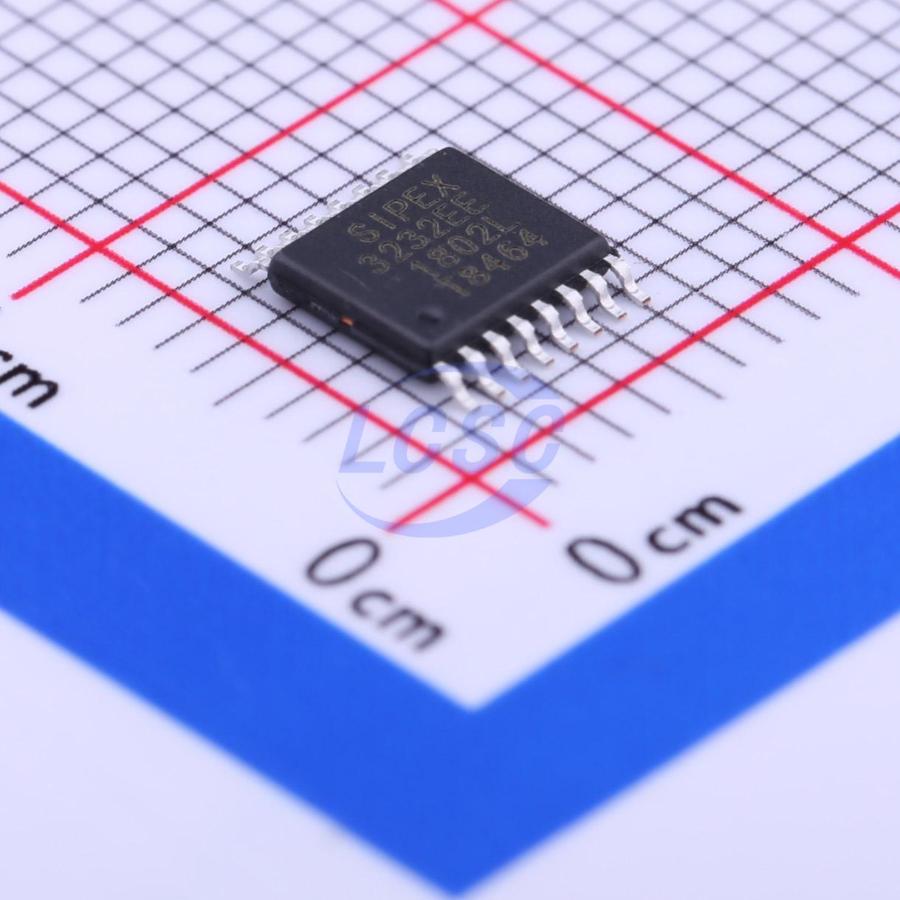

SP3232EEY-L/TR

Identity

• Manufacturer: MaxLinear(迈凌)
• Model / MPN: SP3232EEY-L/TR
• LCSC: C13482
• Category: rs232-transceiver
• Description: True 3.0V to 5.5V RS-232 transceiver, 2 drivers, 2 receivers, 235Kbps data rate, ±15kV ESD, charge pump, -40°C~+85°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• uart: interface
• rs232: interface

Package And Footprint

• Package / footprint name: TSSOP-16
• Pin count: 16
• EasyEDA symbol UUID: 1311ee674c5143bca3428635491716bd
• EasyEDA footprint UUID: a11950ceac50438289ff689a35fd9574
• EasyEDA device UUID: d0a75d96f2494e49b95cfb01661e6248
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 3V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Basic Part
• JLC note / assembly basis: EasyEDA/JLC verified common logic, level-shifting, bus-interface, and analog-switch seed
• Assembly status: jlc_basic
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/SP3232EEY-L%252FTR/14131.html
• Product URL: https://item.szlcsc.com/datasheet/SP3232EEY-L%252FTR/14131.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: legacy RS-232 serial ports, debug/service connectors, industrial instruments, and UART level conversion
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category rs232-transceiver, interfaces uart, rs232, package TSSOP-16, and EasyEDA footprint UUID a11950ceac50438289ff689a35fd9574.
