TLC59116IPWR

Identity

Manufacturer: TI(德州仪器)
Model / MPN: TLC59116IPWR
LCSC: C131194
Category: led-driver
Description: TLC59116 16-channel FM+ I2C bus constant-current LED sink driver, 3V~5.5V input, 97kHz, 17V, 120mA, PWM;I2C dimming.
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface
pwm: interface

Package And Footprint

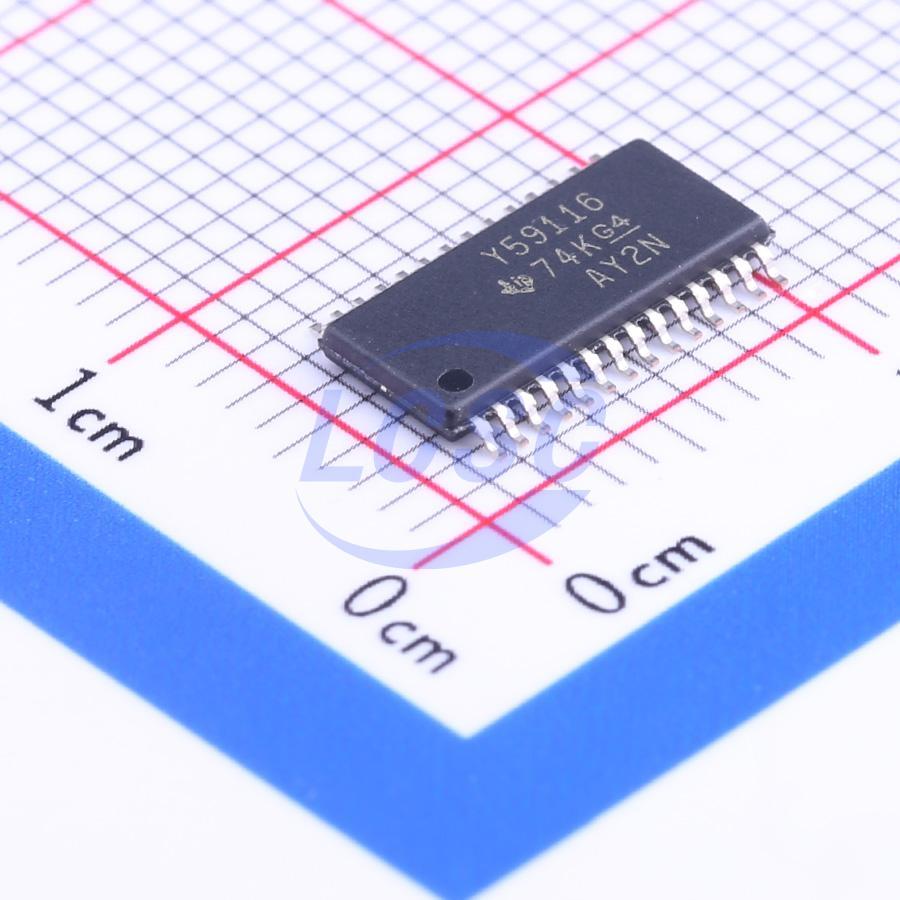

Package / footprint name: TSSOP-28
Pin count: 28
EasyEDA symbol UUID: 4653f9fa508f4250818c83cfa4a04525
EasyEDA footprint UUID: 75e2be1ce8c146faaec0368d035c10c1
EasyEDA device UUID: 700f429255de40729547b5e058f06562
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common drivers, isolation, and actuation seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tlc59116
Product URL: https://www.ti.com/cn/lit/gpn/tlc59116
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category led-driver, interfaces i2c, pwm, package TSSOP-28, and EasyEDA footprint UUID 75e2be1ce8c146faaec0368d035c10c1.

Search Keywords

seed:common-drivers-isolation-actuation, source:easyeda-bridge, iot, common-pcb, tlc59116, 16-channel, constant-current, i2c, led-driver, tssop-28, jlc-extended, pwm, jlc_extended, jlc-note:easyeda-jlc-verified-common-drivers-isolation-and-actuation-seed
