MCP9808T-E/MS

Identity

• Manufacturer: MICROCHIP(美国微芯)
• Model / MPN: MCP9808T-E/MS
• LCSC: C129490
• Category: temperature-sensor
• Description: Digital temperature sensor, I2C/SMBus, ±0.5°C accuracy, -40°C+125°C range, 2.7V5.5V supply, 250ms conversion time.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• i2c: interface

Package And Footprint

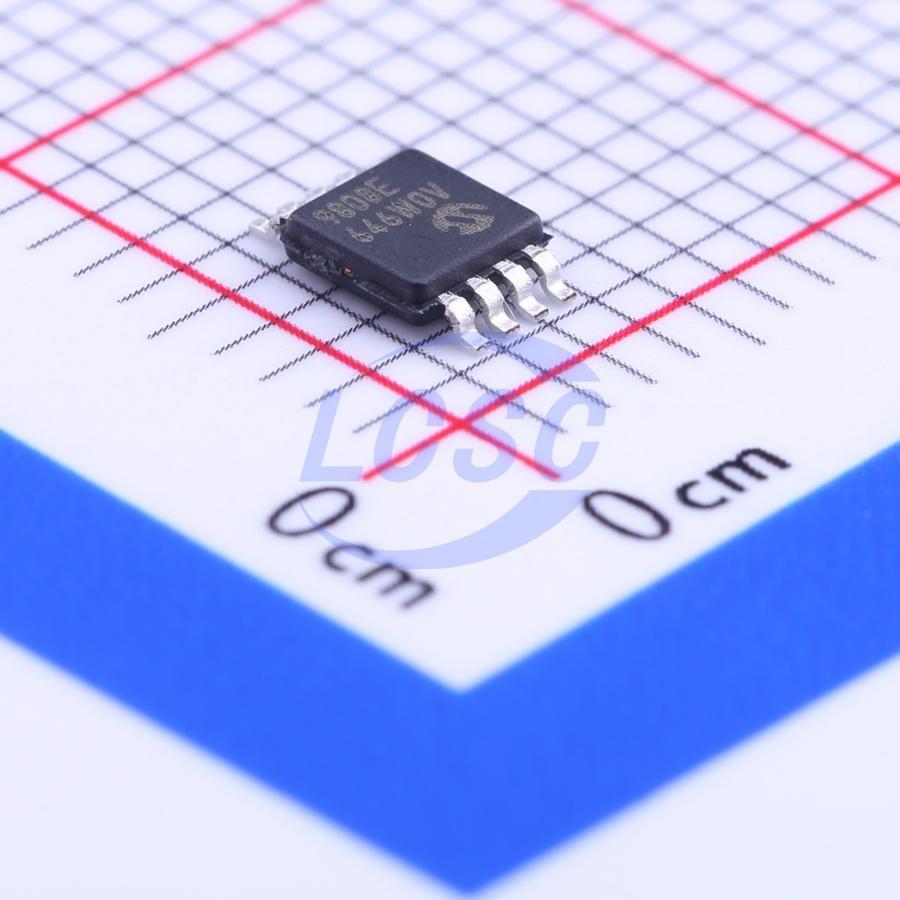

• Package / footprint name: MSOP-8
• Pin count: Unknown
• EasyEDA symbol UUID: 178eadbc94a543d48dc7f17d6b085a85
• EasyEDA footprint UUID: a138b7ffc0344dc7a9c23c13a37b0843
• EasyEDA device UUID: 694a813fde76489c8ca45d323605c9ef
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 2.7V~5.5V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/MCP9808T-E%252FMS/140776.html
• Product URL: https://item.szlcsc.com/datasheet/MCP9808T-E%252FMS/140776.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: board temperature, enclosure temperature, thermal alarms, compensation inputs, and 1-Wire or I2C temperature telemetry
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category temperature-sensor, interfaces i2c, package MSOP-8, and EasyEDA footprint UUID a138b7ffc0344dc7a9c23c13a37b0843.
