KT-0603G

Identity

• Manufacturer: KENTO
• Model / MPN: KT-0603G
• LCSC: C12624
• Category: led

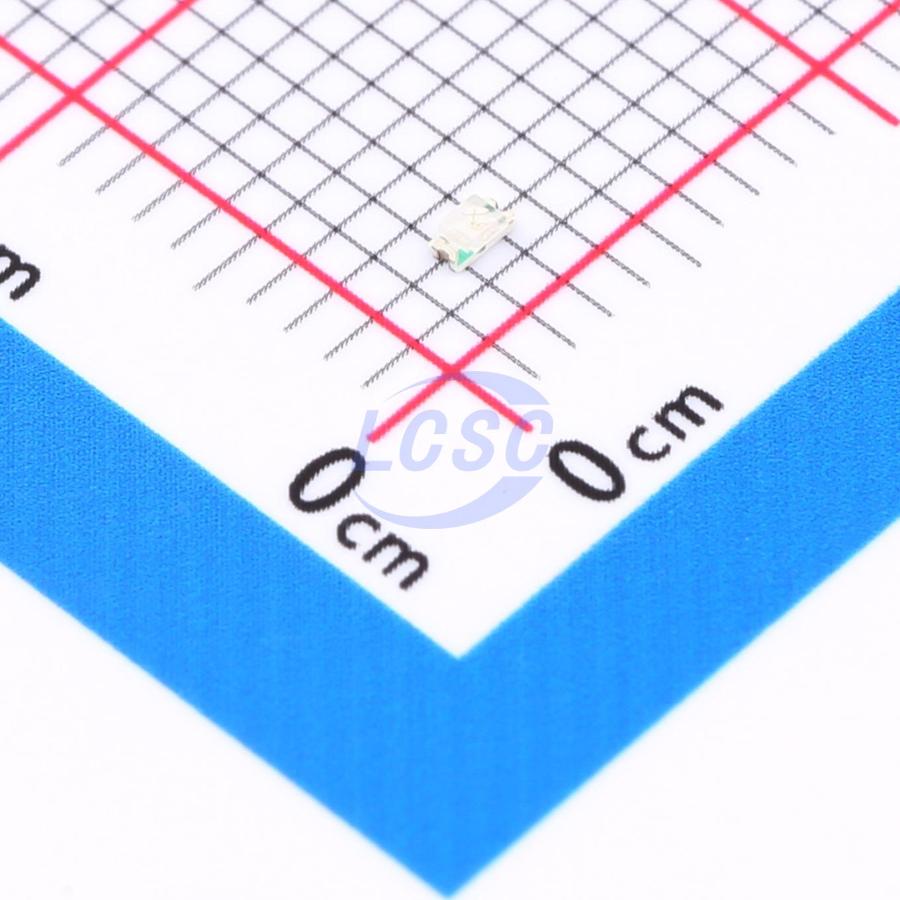

• Description: 0603 high-brightness emerald green LED, 1.6mm x 0.8mm, Vf 3.1V, 100mW, 5mA, 513nm~528nm dominant, 525nm peak.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

• Package / footprint name: 0603
• Pin count: Unknown
• EasyEDA symbol UUID: 8fb3f703f3c2484ebc63619428603ff5
• EasyEDA footprint UUID: ab8fcad6728e4197a69081eb9195186e
• EasyEDA device UUID: e8b07cfe9d254e27bcc3c1116be11e2b
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common IoT basics seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/KT-0603G/13258.html
• Product URL: https://item.szlcsc.com/datasheet/KT-0603G/13258.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category led, interfaces none captured, package 0603, and EasyEDA footprint UUID ab8fcad6728e4197a69081eb9195186e.
