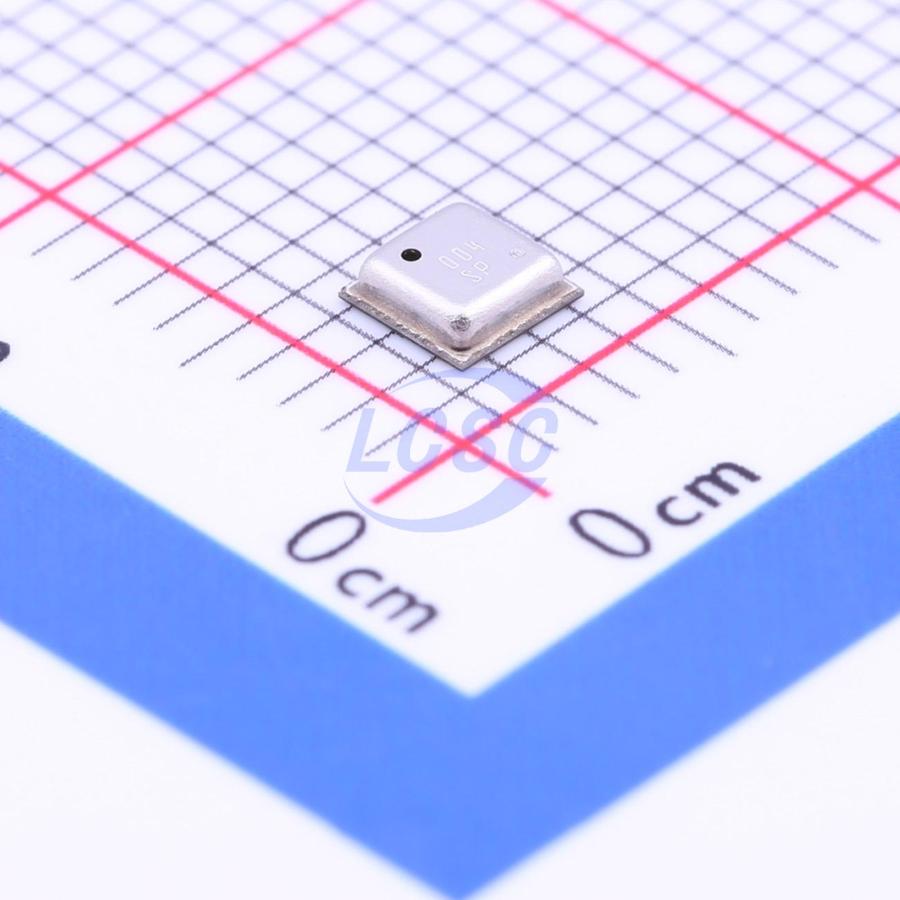

BME680

Identity

Manufacturer: Bosch(博世)
Model / MPN: BME680
LCSC: C125972
Category: environment-sensor
Description: Low-power gas, pressure, temperature and humidity sensor, 1.71V~~3.6V, SPI/I2C, 30Kpa~~1.1bar, 150nA standby, 0.6hpa abs, 0.12hpa rel
Source: EasyEDA/JLC verified common component seed
Project designators: Not project-specific
Project quantity per board: Not project-specific

Capabilities

i2c: interface
spi: interface

Package And Footprint

Package / footprint name: LGA-8
Pin count: 8
EasyEDA symbol UUID: 43a86b8981944b8cab8c965e3cd2da7c
EasyEDA footprint UUID: 6faebc17c04546689444578f552d051d
EasyEDA device UUID: e6c929d3a44f4a4bbd9879a02666254b
EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

Active current: Not characterized in seed; extract active current from datasheet tables.
Sleep / standby current: EasyEDA property: 150nA.
Supply rails: EasyEDA property: 1.71V~3.6V.
Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

JLC class: Extended Part
JLC note / assembly basis: EasyEDA/JLC verified common environment, motion, light, proximity, and temperature sensor seed
Assembly status: jlc_extended
Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

Datasheet / product URL: https://item.szlcsc.com/datasheet/BME680/137252.html
Product URL: https://item.szlcsc.com/datasheet/BME680/137252.html
Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

Good for: temperature, humidity, pressure, VOC, weather, enclosure health, comfort, and environmental telemetry nodes
Avoid when: Not captured yet.
Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
Equivalent search hints: match category environment-sensor, interfaces i2c, spi, package LGA-8, and EasyEDA footprint UUID 6faebc17c04546689444578f552d051d.
