TPS22965DSGR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: TPS22965DSGR
• LCSC: C122837
• Category: load-switch
• Description: 5.7V, 6A ultra-low-on-resistance load switch, 800mV5.7V supply, active high, 16mΩ RDS(on), -40°C+85°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

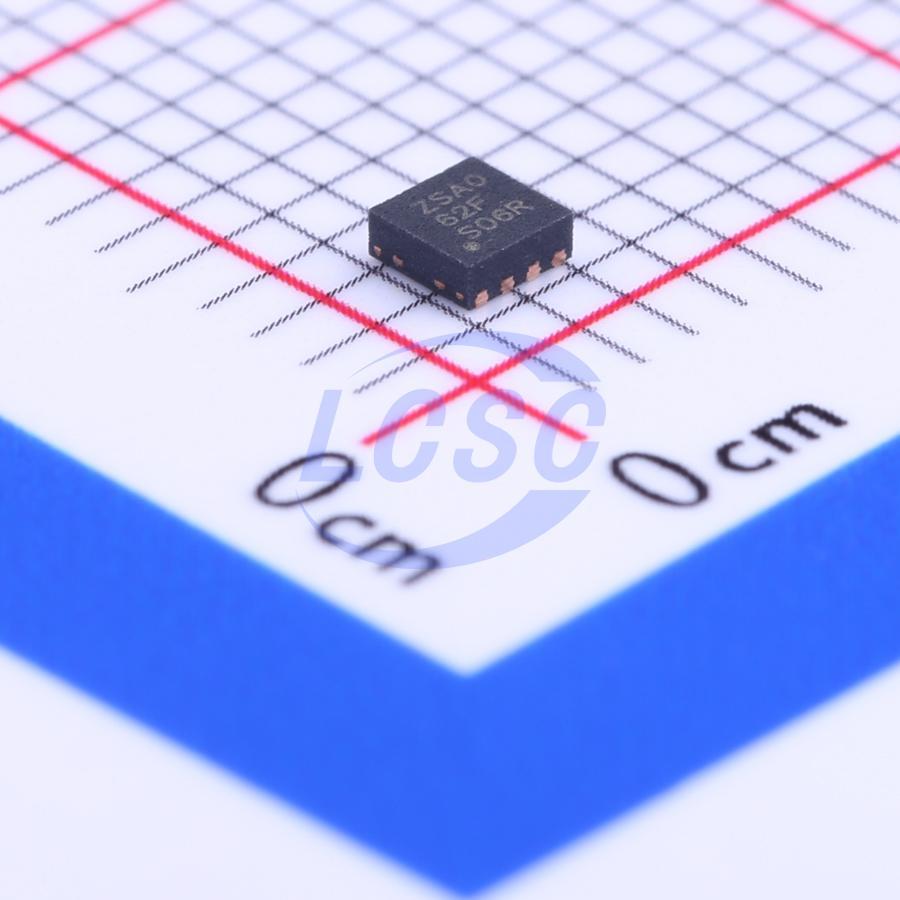

• Package / footprint name: UDFN-8-EP(2x2)
• Pin count: Unknown
• EasyEDA symbol UUID: 35507316b5bd4948bde30a0014d7af47
• EasyEDA footprint UUID: 04adae2da21c49c08fd3143759e8531d
• EasyEDA device UUID: d9721e6616df4f21b93dab528a77a15d
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: Application-defined.
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common battery management, USB-C power, and power-path seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/tps22965
• Product URL: https://www.ti.com/cn/lit/gpn/tps22965
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category load-switch, interfaces gpio, package UDFN-8-EP(2x2), and EasyEDA footprint UUID 04adae2da21c49c08fd3143759e8531d.
