INA180A1IDBVR

Identity

• Manufacturer: TI(德州仪器)
• Model / MPN: INA180A1IDBVR
• LCSC: C122228
• Category: current-sense-amplifier
• Description: High-side/low-side voltage-output current-sense amplifier, 1 channel, Vcm -200mV26V, gain 20V/V, 350kHz, 100nA Ib, 25uV Vos, -40°C+125°C.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• Not captured yet.

Package And Footprint

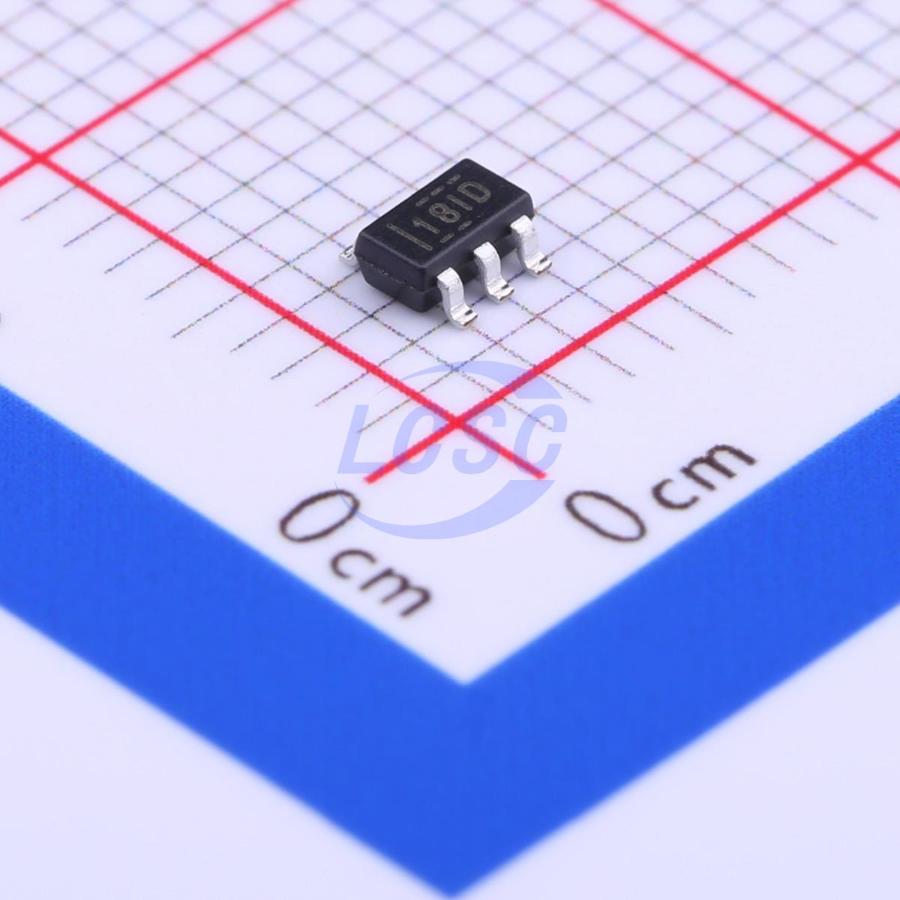

• Package / footprint name: SOT-23-5
• Pin count: 5
• EasyEDA symbol UUID: f8a998694c9646ee9580a07d68dab5e3
• EasyEDA footprint UUID: 3962fa5424e54dde8cfd30751ab1c7e4
• EasyEDA device UUID: 6df5cd80de544cc0b068934d49f691b6
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: Not characterized in seed; capture allowed supply rail range from datasheet.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common power, analog, and interface IC seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://www.ti.com/cn/lit/gpn/ina180
• Product URL: https://www.ti.com/cn/lit/gpn/ina180
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: high-side or low-side shunt-current sensing, overcurrent detection, and analog current feedback
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category current-sense-amplifier, interfaces none captured, package SOT-23-5, and EasyEDA footprint UUID 3962fa5424e54dde8cfd30751ab1c7e4.
