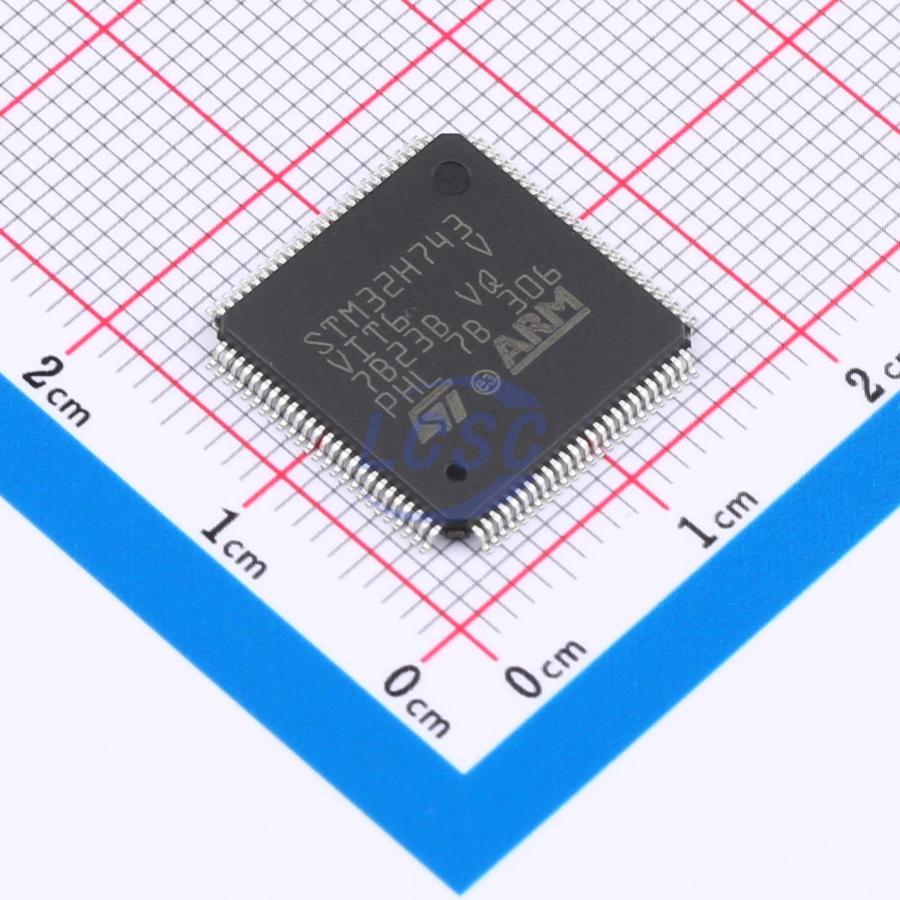

STM32H743VIT6

Identity

• Manufacturer: ST(意法半导体)
• Model / MPN: STM32H743VIT6
• LCSC: C114409
• Category: mcu
• Description: High-performance ARM Cortex-M7 MCU with DSP, DP-FPU, 2MB Flash, 1MB RAM, 480MHz CPU, 82 I/O, 16bit ADC, 12bit DAC, 1.71V~3.6V.
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• uart: interface
• spi: interface
• i2c: interface
• usb: interface
• adc: interface
• dac: interface
• sdio: interface

Package And Footprint

• Package / footprint name: LQFP-100(14x14)
• Pin count: 100
• EasyEDA symbol UUID: 1b7b535c2a0a433fb13ec76d8b8876f3
• EasyEDA footprint UUID: 7d976023483f4dd2b8fd93e35aef145b
• EasyEDA device UUID: d9f333b75e114ef48848d2eb560b7c84
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Not characterized in seed; extract active current from datasheet tables.
• Sleep / standby current: Not characterized in seed; extract sleep/standby current from datasheet tables.
• Supply rails: EasyEDA property: 1.71V~3.6V.
• Notes: Seed values are search hints only. Verify power modes, rail limits, startup requirements, and reference design passives from the datasheet.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common MCU and wireless module seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/STM32H743VIT6/115649.html
• Product URL: https://item.szlcsc.com/datasheet/STM32H743VIT6/115649.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: embedded control, firmware simulation, peripheral-rich custom boards
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category mcu, interfaces uart, spi, i2c, usb, adc, dac, sdio, package LQFP-100(14x14), and EasyEDA footprint UUID 7d976023483f4dd2b8fd93e35aef145b.
