TS-1109TP-B

Identity

• Manufacturer: XKB Connection(中国星坤)
• Model / MPN: TS-1109TP-B
• LCSC: C1121892
• Category: tactile-switch

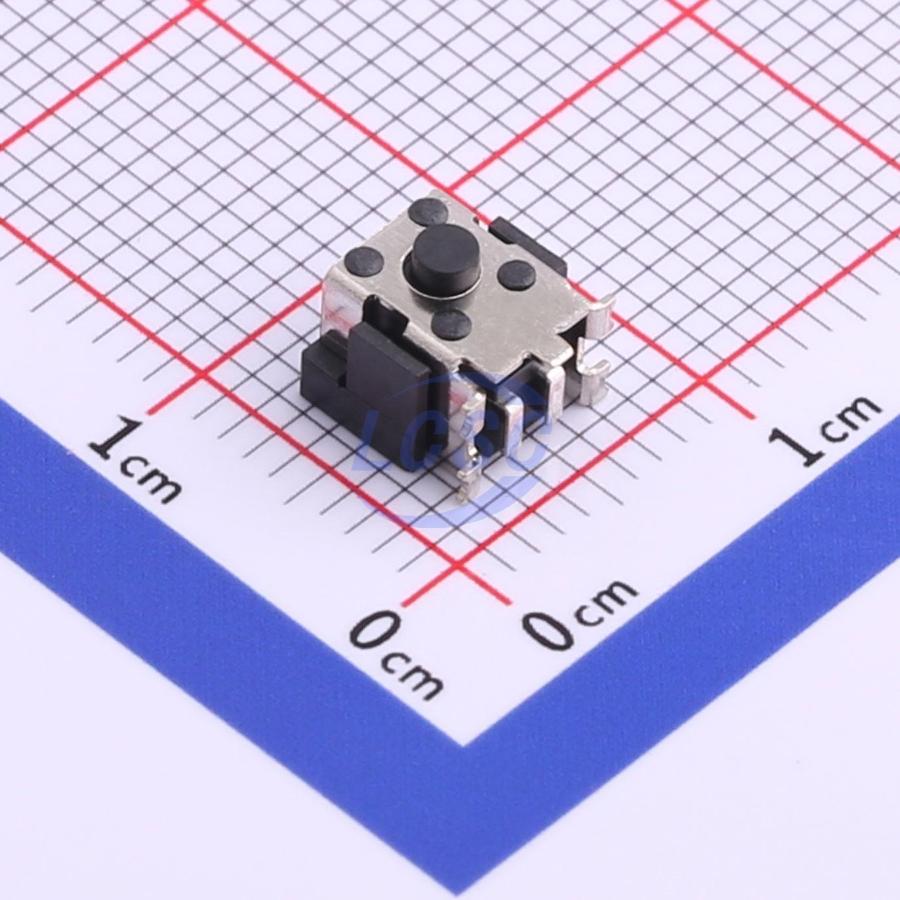

• Description: TS-1109TP-B 6.44.83.15mm right-angle SMT tactile switch; SPST; 1.6N; 50mA; 12V; black round button; with bracket
• Source: EasyEDA/JLC verified common component seed
• Project designators: Not project-specific
• Project quantity per board: Not project-specific

Capabilities

• gpio: interface

Package And Footprint

• Package / footprint name: SMD,6.4x4.8mm
• Pin count: Unknown
• EasyEDA symbol UUID: 617683d5f2604af5853e45466fd4ec97
• EasyEDA footprint UUID: f37c01522de04d9c913a87a59b3c23d3
• EasyEDA device UUID: c065c87d1c2b48c5b5d14fbd57057d8b
• EasyEDA library UUID: 0819f05c4eef4c71ace90d822a990e87

Power And Operating Modes

• Active current: Passive part; no quiescent current.
• Sleep / standby current: Passive part; no quiescent current.
• Supply rails: 12V
• Notes: Ratings are seeded from EasyEDA/LCSC properties when present; verify against datasheet for final design.

Procurement Classification

• JLC class: Extended Part
• JLC note / assembly basis: EasyEDA/JLC verified common connector, HMI, and mechanical interface seed
• Assembly status: jlc_extended
• Price-break table: Not captured in seed. Store only timestamped price-break snapshots when intentionally refreshed.
• Live stock: intentionally not stored as durable selection data; refresh externally before ordering.

Datasheet And Links

• Datasheet / product URL: https://item.szlcsc.com/datasheet/TS-1109TP-B/1212315.html
• Product URL: https://item.szlcsc.com/datasheet/TS-1109TP-B/1212315.html
• Datasheet-derived notes: Not extracted yet. Use PDF extraction to fill power modes, absolute maximums, pin functions, package variants, and reference design requirements.

Selection Notes

• Good for: reuse when package, electrical ratings, footprint, and assembly class match the project constraints
• Avoid when: Not captured yet.
• Known layout constraints: Verify package land pattern, decoupling requirements, thermal pad, RF keepouts, crystal routing, and boot straps from the datasheet.
• Equivalent search hints: match category tactile-switch, interfaces gpio, package SMD,6.4x4.8mm, and EasyEDA footprint UUID f37c01522de04d9c913a87a59b3c23d3.
